CD-2181B

Overview

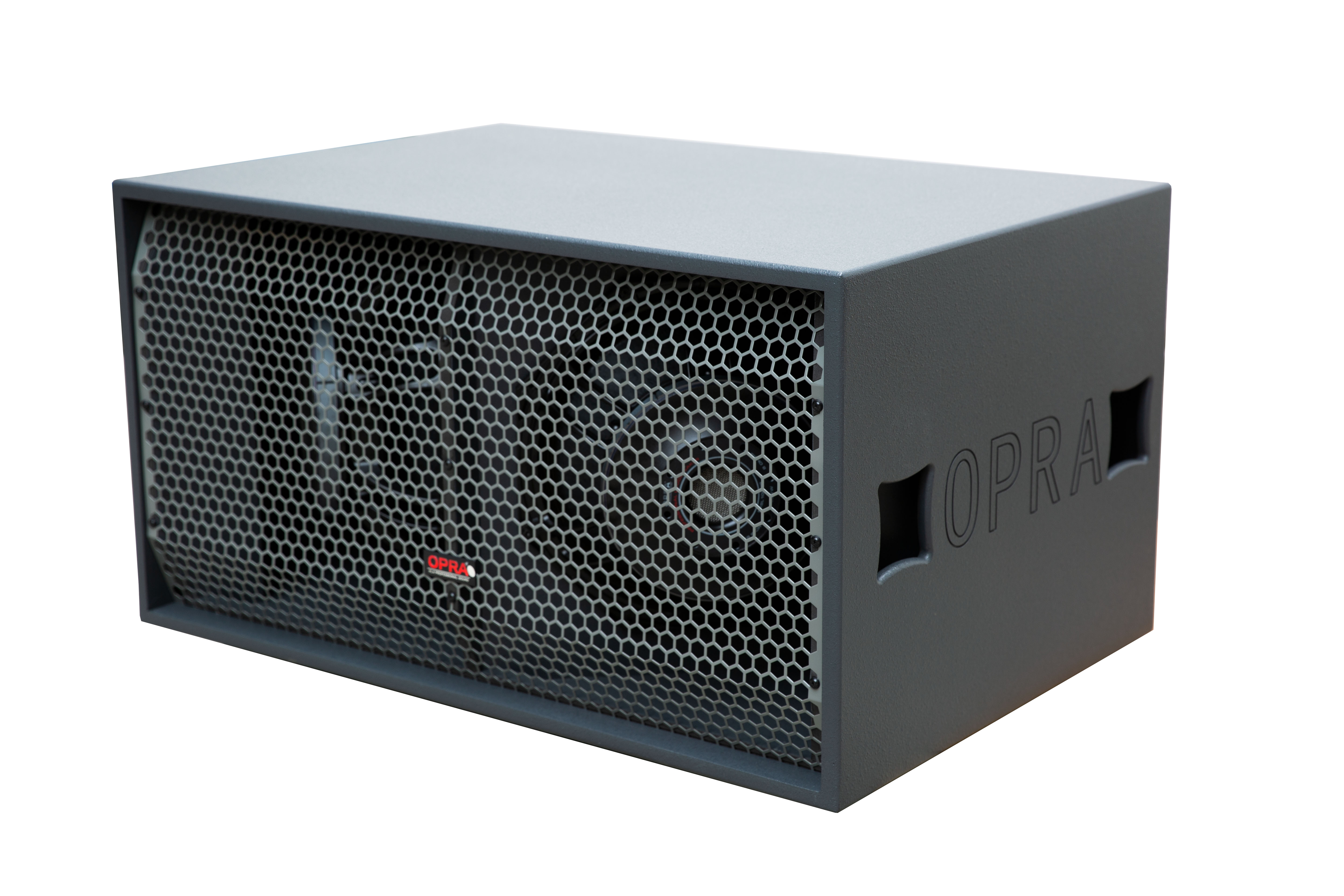

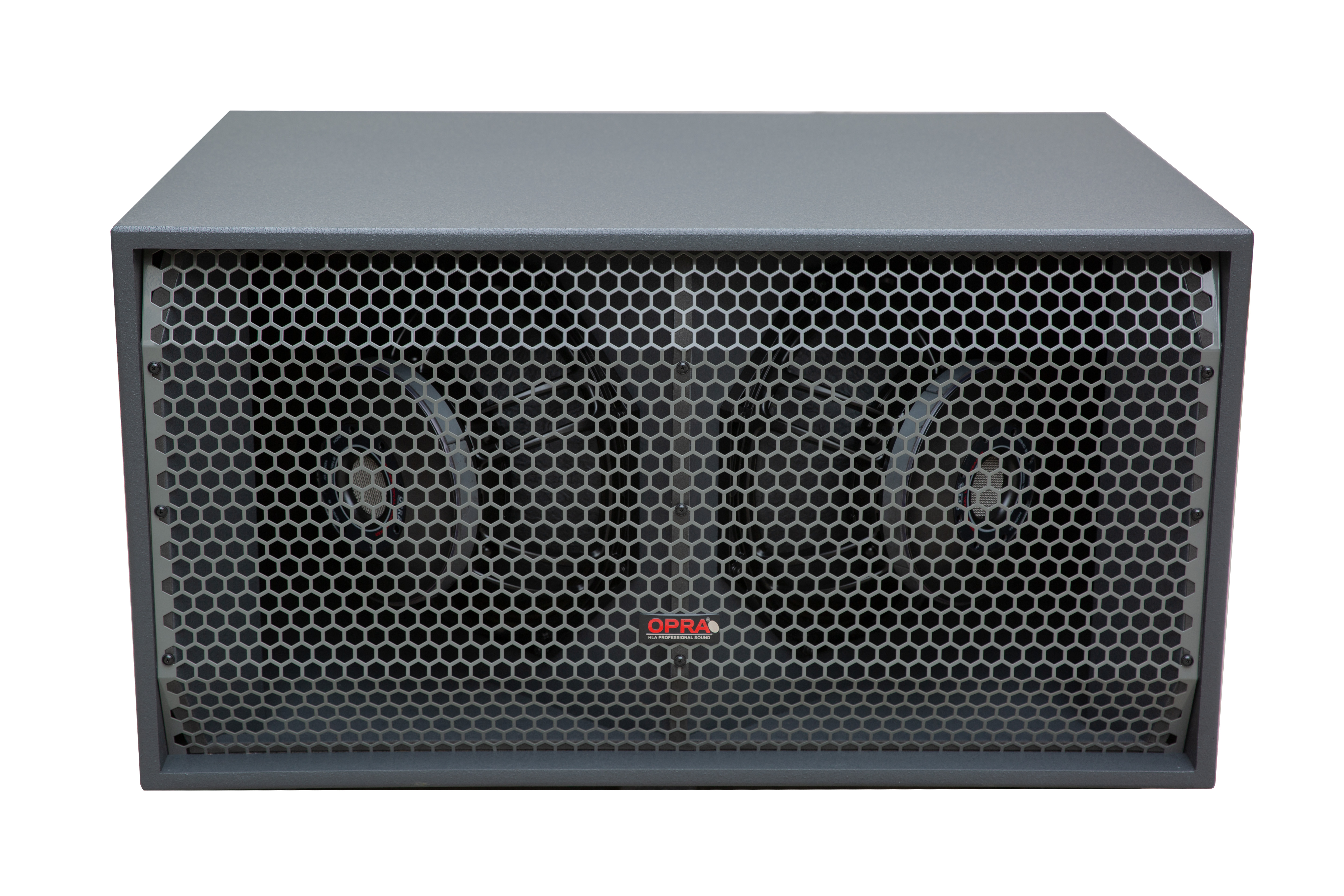

OPRA CD-2181B is a high-performance subwoofer designed for ground-stack applications, equipped with Dual 18-inch long-excursion driver and featuring a bass-reflex design.


When used in groups of three or multiples of three, the CD-2181B can form a cardioid subwoofer array. By placing one enclosure rear-facing and driving it with amplifiers supporting OPRA A+ software, precise low-frequency directivity control is achieved, greatly reducing rear sound radiation.


The enclosure is constructed of high-strength marine plywood, finished with IP56-rated impact-resistant and weather-resistant water-based coating. It has a front metal grille with acoustically transparent foam, 2 pcs each side handles for easy transport, and four rubber feet at the bottom to prevent scuffing.


An optional waterproof transport cover is also available to fully protect the front of the subwoofer during transit.

Technical Data

System Data

Frequency response (-5 dB standard) ：

37 Hz - 140 Hz
Frequency response (-5 dB 100 Hz mode) ：
37 Hz - 110 Hz
Frequency response (–5 dB INFRA mode) ：
35 Hz - 80 Hz

Max. sound pressure ：
with OPRA TTM8K4 / OPRA 4412    130 dB
with OPRA TTM12K4/OPRA Aura 8   135 dB
with OPRA X4/ X8 / X4L   143 dB

Cabinets per amplifier channel ：

1




Loudspeaker Data

Configuration ：
High performance subwoofer

Nominal impedance
8 Ω

Power handling capacity (RMS/peak 10 ms)
2400/4800 W

Components ：
2 x 18" driver

Connections ：
2 x NLT4 F/M
SUB 1+ 1-
    /    2+ 2-



Dimensions / weight

Dimensions (h x w x d) ：
1275 x 700 x 865 mm

50.20 x 27.56 x 34.06 "


Weight ：
127 kg

279.99 lb
