OP-1.2

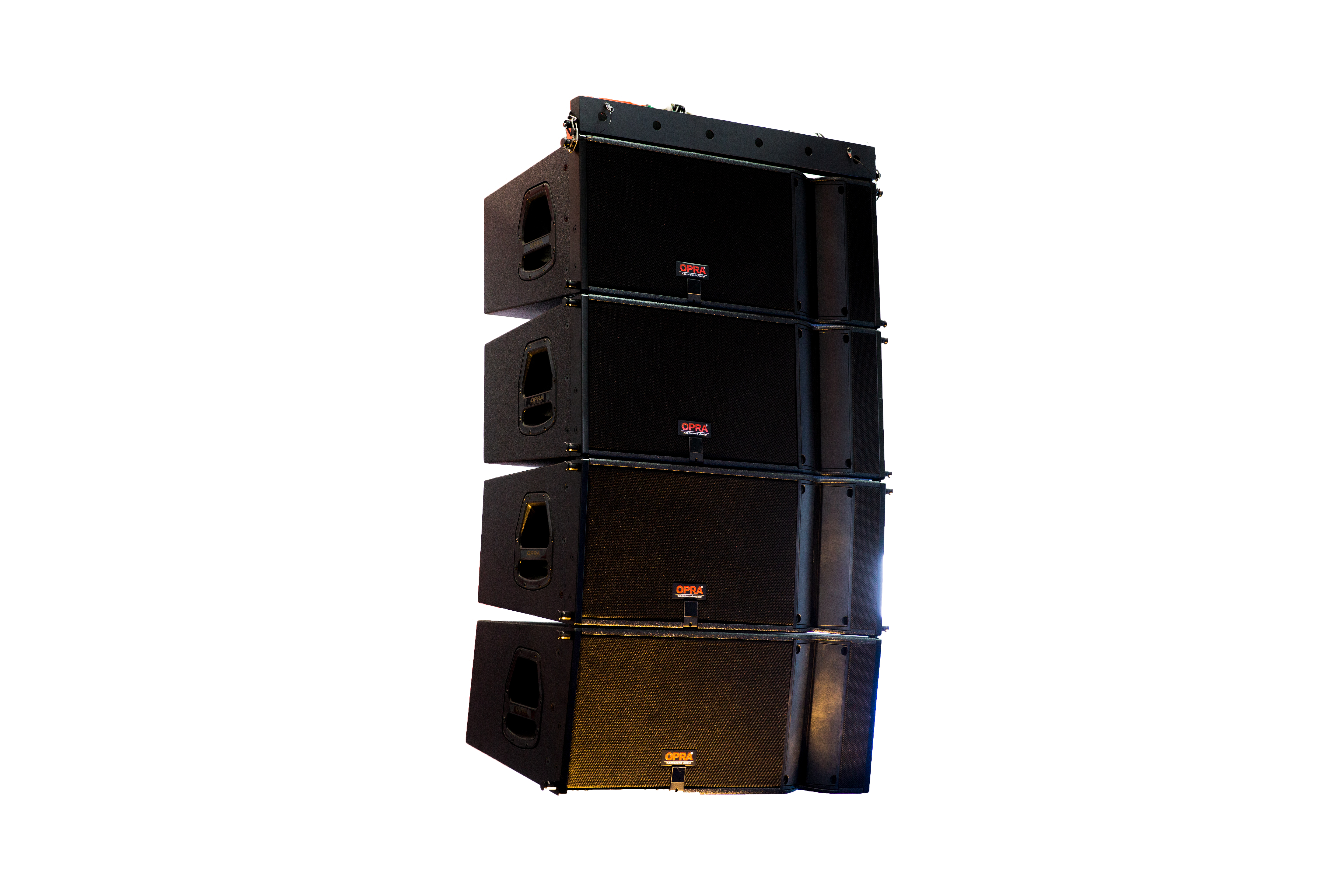

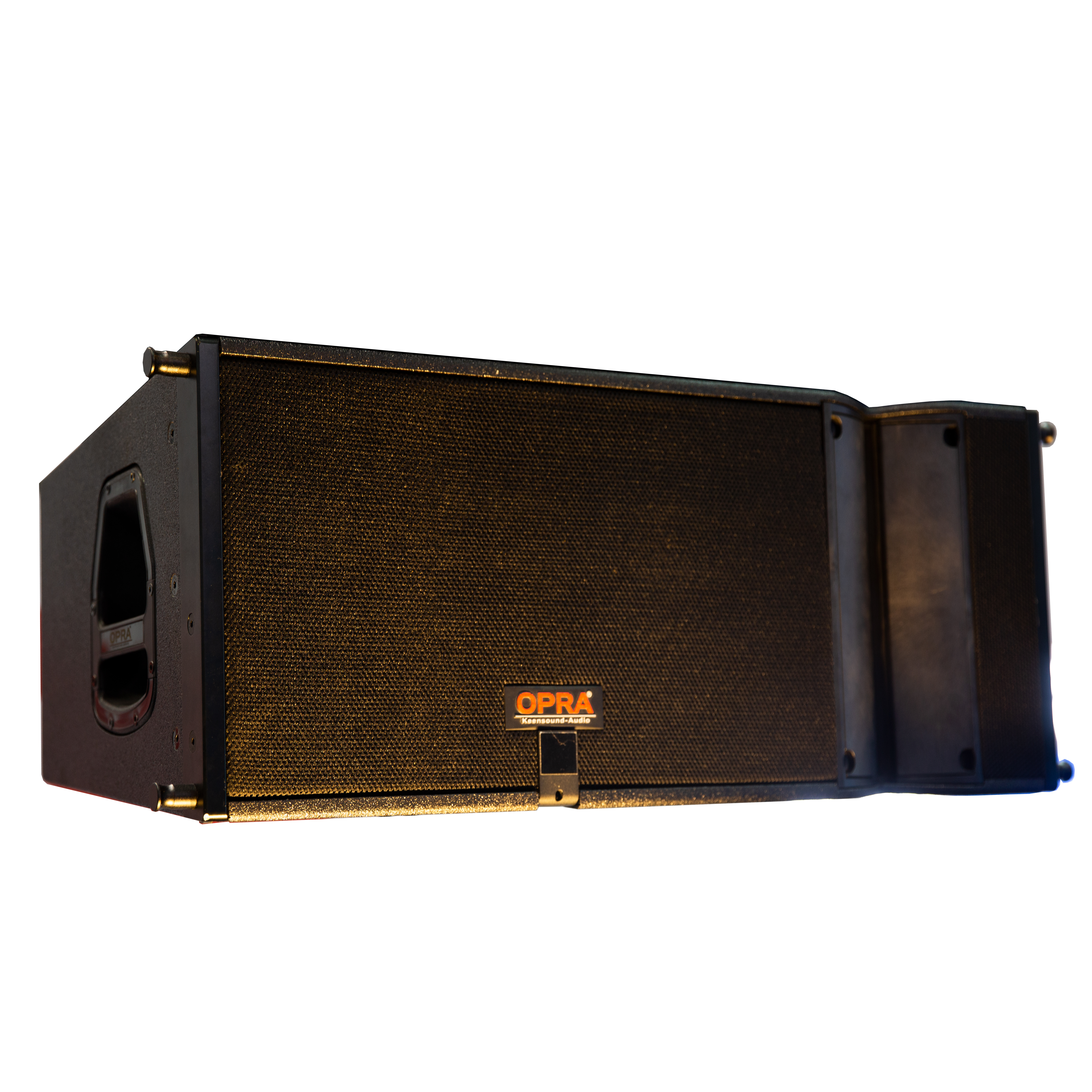

OP-1.2 is a high-performance, versatile loudspeaker designed for demanding professional audio applications. Engineered for precision and power, it delivers exceptional clarity and controlled dispersion to ensure consistent sound coverage in various environments.
Overview

OPRA OP-1.2 offers advanced acoustic flexibility, allowing you to tailor the sound field to your specific venue requirements.

  • Adjustable Horizontal Dispersion: The horizontal coverage can be switched between 120° for wide-area coverage and 70° for focused long-throw projection. By narrowing the dispersion, you increase sound intensity and throw, ensuring high-frequency content reaches the back of the venue with clarity.

  • Precision Vertical Control: The system allows for precise vertical adjustment from 0° to 10°, providing directional control to steer the sound exactly where it is needed while minimizing unwanted reflections.

Applications

The OP-1.2’s combination of high SPL and flexible directivity makes it an ideal solution for:

  • Large-scale touring and live performance venues.

  • Fixed installations in theaters and auditoriums.

  • Houses of worship requiring high speech intelligibility and musical impact.

  • Corporate events demanding consistent, high-quality audio coverage.

Technical Data

System Data

Frequency response (-5 dB standard) ：

63 Hz - 18k Hz
Frequency response (-5 dB 120 Hz mode) ：
120 Hz - 110 Hz


Max. sound pressure ：
with OPRA TTM8K4 / OPRA 4412    126 dB
with OPRA TTM12K4/OPRA Aura 8   133 dB
with OPRA X4/ X8 / X4L   133 dB

Cabinets per amplifier channel ：

2




Loudspeaker Data

Configuration ：
High performance subwoofer

Nominal impedance
8 Ω

Power handling capacity (RMS/peak 10 ms)
500/1000 W

Components ：

1 x 12" LF

2 x 6.5" MF

1 X 3" HF


Connections ：
2 x NLT4
LF 1+ 1-
   MHF   2+ 2-



Dimensions / weight

Dimensions (w x h x d) ：
370×610×390mm

14.57 x 24.02 x 15.35 "


Weight ：
36.88 kg

81.31 lb
