LA-115S

Subwoofer：15 inch Direction Subwoofer
Size(W x H x D)：590×495×570mm
Weight：34.5 kg
SPLMAX：126 dB
Prev: FA-15
Next: FA-12
Overview

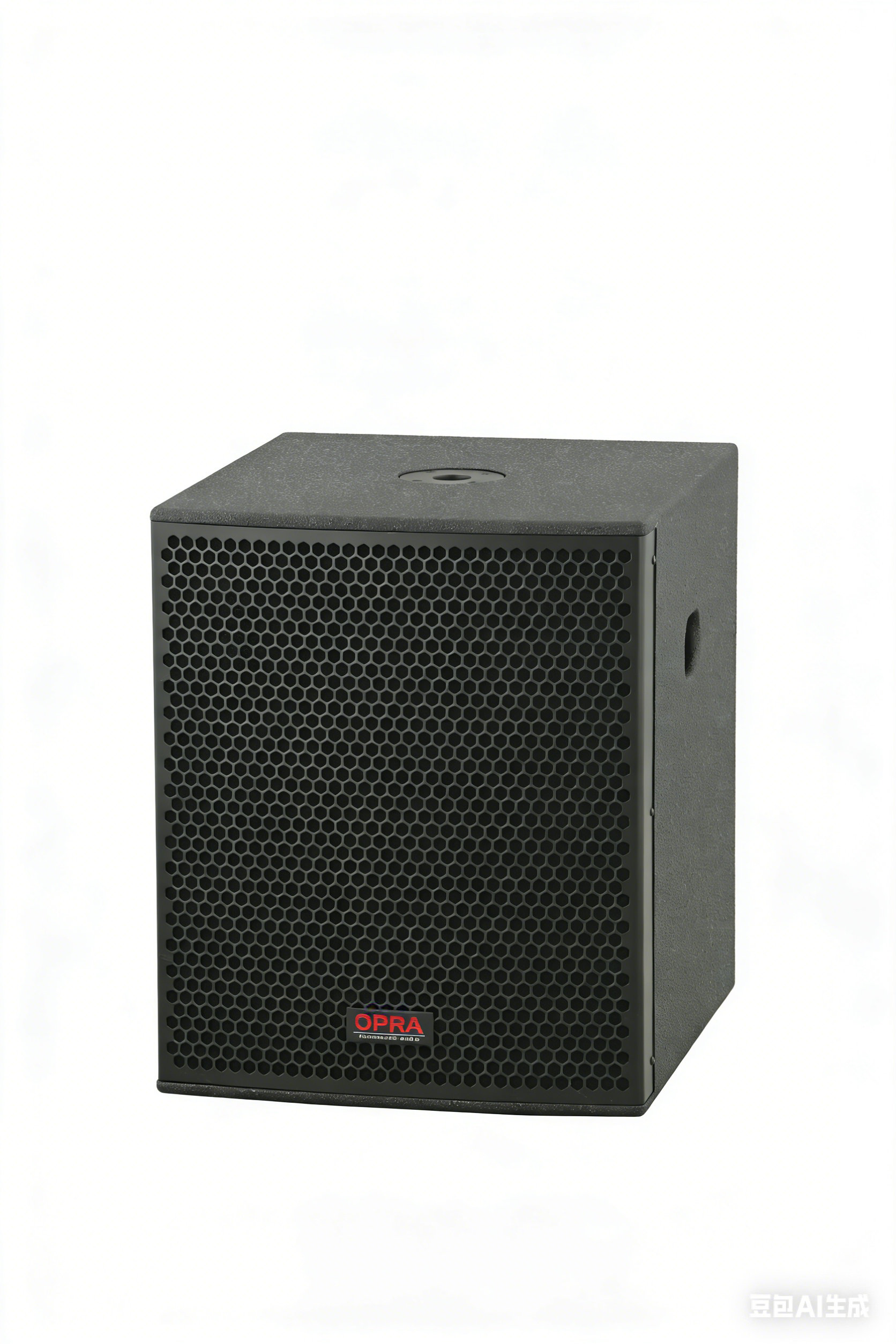

OPRA LA-115S is a high-performance subwoofer designed for ground-stack applications, equipped with an 15 inch long-excursion driver and featuring a bass-direct design, which is suitable for a variety of permanent installation applications.


When used in groups of two or multiples of two, the LA-115S can form a End-fire subwoofer array.

By placing one enclosure rear-facing and driving it with amplifiers supporting OPRA A+ software, Long throw distance forward, Standard setup 4 units per array —— Line up the subwoofers in a row, all facing forward, make sure energy concentrated towards the front.


The enclosure is constructed from high-strength marine-grade plywood, finished with an IP56-rated, impact-resistant and weather-resistant water-based coating. It features a front metal grille with acoustically transparent foam, side handles for easy transportation, and four rubber feet at the bottom to prevent scuffing and abrasion.


The top panel is fitted with an M20 threaded flange, compatible with OPRA speaker stands and stand winders. An optional waterproof transport cover is also available to fully protect the front of the subwoofer during transit.

Technical Data

System Data

Frequency response (-5 dB standard) ：

45 Hz - 160 Hz
Frequency response (-5 dB 100 Hz mode) ：
45 Hz - 120 Hz
Frequency response (–5 dB INFRA mode) ：
45 Hz - 90 Hz

Max. sound pressure ：
with OPRA TTM8K4 / OPRA 4412    122 dB
with OPRA TTM12K4/OPRA Aura 8   124 dB
with OPRA X4/ X8 / X4L   126 dB

Cabinets per amplifier channel ：

1




Loudspeaker Data

Configuration ：
High performance subwoofer

Nominal impedance
8 Ω

Power handling capacity (RMS/peak 10 ms)
500/1500 W

Components ：
1 x 15" driver

Connections ：
2 x NLT4 F/M
SUB 1+ 1-
    /    2+ 2-



Dimensions / weight

Dimensions (h x w x d) ：
590 x 495 x 570 mm

23.23 x 19.49 x 22.44 "


Weight ：
34.5 kg

76.06 lb
