OPRA TTM Series Amplifier

TTM12K4

Documents

The TTM Series is a versatile, 4-channel 2U amplifier platform integrated with a full suite of professional signal processing tools – including 2048-tap FIR filters, Damping Factor Control and Dynamic EQ. It features flexible analog, AES3, and Dante/AES67 input and output connectivity, plus a high-brightness 4.3” IPS capacitive touch display for intuitive local operation.

Boasting abundant power and voltage headroom, the TTM Series delivers impressive SPL performance even with 8Ω or 16Ω loads, and is capable of a robust 4 x 2000 W output into 4Ω loads. Its patented, PFC-equipped power supply enables global operability and incorporates 750J of energy storage, ensuring consistent, reliable performance in any application.

Local control via the on-board display interface grants easy access to core functions including preset recall, gain adjustment, delay tuning and muting – perfectly meeting the day-to-day operational needs of most rental companies. For remote management, the TTM Series is fully compatible with ArmoníaPlus software, enabling seamless centralized control.


Performance

Number of channels :
4

Output power(per channel - symmetrical, all channels driven) :
1800 W @ 8 Ω, 2700 W @ 4 Ω, 2000 W @ 2 Ω

Output power(per channel - asymmetrical, all channels driven, channels 2&4 at -6dB) :
1900 W @ 8 Ω, 3000 W @ 4 Ω, 2000 W @ 2 Ω

Bridged output power :
5400 W @ 8 Ω, 4000 W @ 4 Ω

Maximum unclipped output voltage :
180 V peak

Maximum output current :
55 A peak

Input sensitivity @ 8 Ω (32 dB gain) :
2.77 Vrms

Signal-to-Noise Ratio (20 Hz - 20 kHz @ 8 Ω) :
110 dB(A) (Typ.)

Maximum input level :
24 dBu

Frequency Response (@ 8 Ω load) :
20 Hz - 20 kHz +/- 1.0 dB

Crosstalk (1 kHz) :
-75 dB (Typ.)

Input impedance :
20 kΩ Balanced

CMRR :
65 dB (Typ.)

THD+N (0.1 W to Half Power) :
< 0.1% (Typ. < 0.05%)

SMPTE IMD (0.1 W to Half Power) :
< 0.1% (Typ. < 0.05%)

Output impedance @ 100 Hz :
30 mΩ

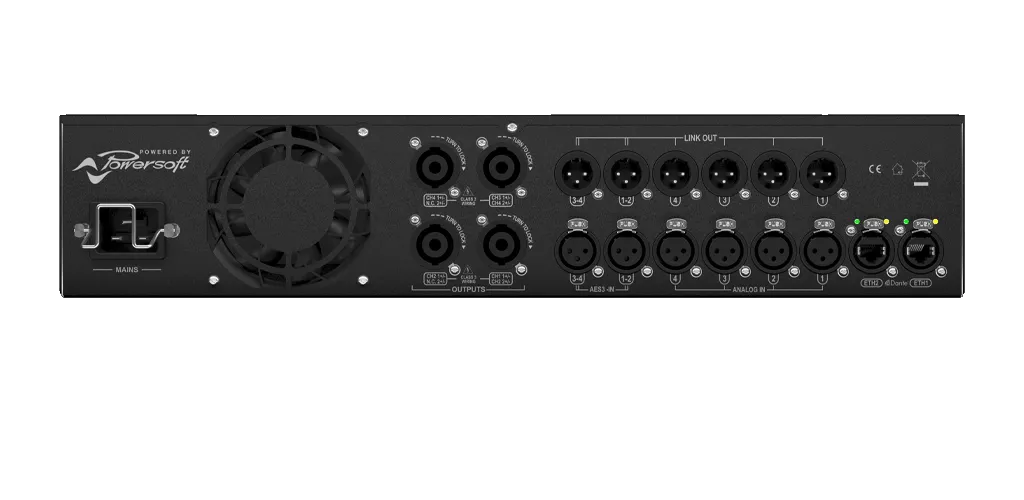

Inputs :
Analog: 4 XLR female, 4 XLR male (LINK)
Digital AES3: 2 XLR female (4 channels), 2 XLR male (LINK)

Digital Dante/AES67:
2 XLR Ethercon (4 channels)

Outputs :
4 Dante/AES67 TX (local input/DSP), 4 x Speakon NL4

Networking Connectivity :
2 Gigabit Ethernet Ethercon ports, Star/Daisy Chain topologies supported
DSP Specifications :
AD Converters: 24 Bit Tandem™ @48kHz (125dB-A DR, 0.005% THD+N); 24 Bit Tandem™ @48kHz (117dB-A DR, 0.003% THD+N); 24 Bit @96kHz (140dB DR, 0.0001% THD+N)

Internal Precision: 32 bit floating point

Fixed Latency:
2.5 ms

Time Alignment Delay:
2s (input) + 100ms (output)

Presets/Snapshots:
50 amplifier snapshots, virtually unlimited speaker presets

Signal Processing:
2048 taps FIR filters, Dynamic EQ, Damping Factor Control; Raised-cosine/custom FIR/parametric IIR EQ; Linear phase/FIR/Butterworth/Linkwitz-Riley/Bessel crossovers (6-48dB/oct)

Limiters:
TruePower™, RMS Voltage, RMS Current, Peak limiterDamping Control: Active DampingControl™, LiveImpedance™ measurement
Power Supply :
Type: Universal regulated switch mode with PFC, SRM (patented, 750J energy storage)
Nominal Voltage (±10%): 100-240 VAC @ 50-60Hz
Operating Voltage: 90-264 VAC @ 50/60 Hz
AC Mains Connector: IEC C20 inlet (20 A max)
Power Consumption @ 100 VAC :Standby Power: 16 W
Idle Power: 42 W
1/8 Power @ 4Ω: 1570 W (limited by AC current to 1/10 Rated Power)
Current Draw (1/8 Power @4Ω): 16.5 A rms
Thermal Loss (1/8 Power @4Ω): 1670 BTU/h
Power Consumption @ 240 VAC :
Standby Power: 17 W
Idle Power: 42 W
1/8 Power @ 4Ω: 1940 W
Current Draw (1/8 Power @4Ω): 8.9 A rms
Thermal Loss (1/8 Power @4Ω): 2000 BTU/h


Physical

Size: 4.3” diagonal IPS

Resolution: 480x272
Brightness: 600 nit

Construction:
Multitouch capacitive

Control:
Rotary encoder (20 steps/turn) with pushbutton

Control Interface :
Local: Display interface

Remote:
ArmoníaPlus System Manager, third-party software

Dimensions :
483 x 381 x 88.9 mm (19 x 15 x 3.5 in)

Weight :
11.3 kg
